Arizona Double 16' x 19' Carport Kit - Grey Structure & Solid Panels
Size
Preview in AR
Sophistication meets practicality with the Arizona Double Carport, crafted to meet your needs for outdoor protection. Its two-legged form makes it easy to access and works just as well as a patio cover, offering shade and protection no matter how you use it. The unique wing carport design makes a statement whether you build it facing inward or outward. The frame and roofing were engineered to withstand harsh weather conditions with polycarbonate panels that block harmful UV rays and an aluminum frame built to last. The Arizona double slope carport kit provides your family with an elegant cover that is sturdy, weather and rust-resistant, and maintenance-free for many years to come.
- Highly resistant, safe polycarbonate carport kit, a multi-functional outdoor structure designed for superior protection all year round
- Transmits natural sunlight while providing up to 100% protection from harmful UV sun rays
- Lifetime resilient polycarbonate glazing; does not fracture, becomes brittle, or turns yellow over time.
- Carport kit firm anti-rust aluminum structure
- Specially engineered to withstand volatile weather conditions.
- The two-post architecture allows easy access and parking while optimizing usable space.
- Clean-lined, functional design
- Double carport maintenance-free, built to last thanks to outstandingly durable materials
- Made with 100% recyclable materials
- Technical information, including dimensions, panel thickness, and wind and snow load, can be found in the photo gallery above.
- The Carports are available in various sizes. Click to find more Carport Kits

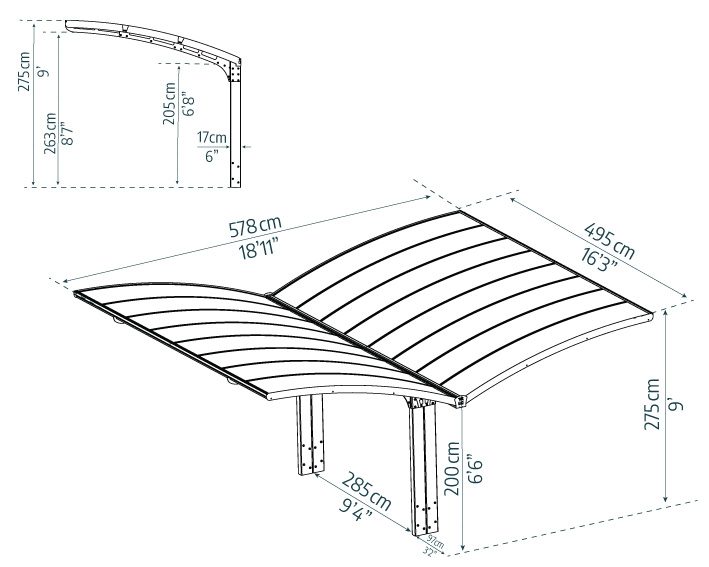

Dimensions
| A | Length | 495cm | 16'3"ft |
| B | Width | 578cm | 18'11"ft |
| C | Height | 275cm | 9'ft |
Product Details
EV Charger
For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.
Built-in Gutters
2 Built-in gutters channel rainwater
Heavy Duty Frame
Robust, rust-resistant, powder-coated, ready to assemble pre-drilled profiles made of heavy duty Aluminum & laser cut galvanized steel connectors in anthracite finish Weather resistant designed to withstand severe weather conditions Easy Access 2 post structure Easy Access 2 post structureRating and Reviews
Rating Breakdown
Reviews with images
Customer Reviews (8)
FAQ
Assembly instructions & Certificates for Downloads
Foundation
The product must be built on a solid anleveled surface in order to perform properly.
1 - Clear the site
2 - Level the ground
In order to assemble this product, it is essential to first dig 2 holes (pits) according to the instructions (for all surfaces). Use wooden beams (not supplied) to assist in leveling of the aluminum poles. Pour the concrete casting into the holes and and wait till dries before contiuing assembly
More details are available in Steps 1-7.
