Arcadia 12' x 14' Carport - Grey Aluminium & Twin-wall Polycarbonate Roof Panels
Size
We’ve all had those mornings when the weather is awful, and you need to clear the snow off your car or get into a scorching hot vehicle. The Arcadia Carport saves you time and effort and shields you and your car from the weather.
The curved roof Carport kit boasts panels that providing UV-protection and full shade, unnecessary scratches, and damage. With 325 cm entry width and 219 cm of overhead clearance, the sturdy Arcadia carport gives you plenty of room to park and walk around your vehicle.
Other features include a gutter to direct rainwater, high impact twin-wall polycarbonate roof panels and an aluminum rust-resistant frame. All these features mean that the structure is multipurpose and can be used as a covered outdoor lounging area as well. Utilizing the unique "Heat Block Technology" the full shade glazing prevents the sun’s rays from shining through making it cooler for an even more enjoyable outdoor experience. Extend the life of your vehicle and spend less time worrying about your car with the Arcadia Carport Kit.
- Versatile Design: Curved canopy works as a carport garage or covered lounging area.
- Durable Structure: The anthracite powder-coated aluminum carport frame is a strong, rust and corrosion-resistant metal that includes galvanized steel support beams for added strength and stability.
- Resilient Panels: Roof panels are made of polycarbonate, a virtually unbreakable material.
Canopia polycarbonate panels are 100% UV protected, which means that they do not turn yellow or become brittle over time. - HEAT BLOCK TECHNOLOGY: Protects your vehicle from harmful UV Rays, interior overheating, and reduces extreme heat EV battery degradation.
- Easy Access: Sturdy and durable 3.15” x 3.15” aluminum poles have 10’7” entry width and 7’2” overhead clearance.

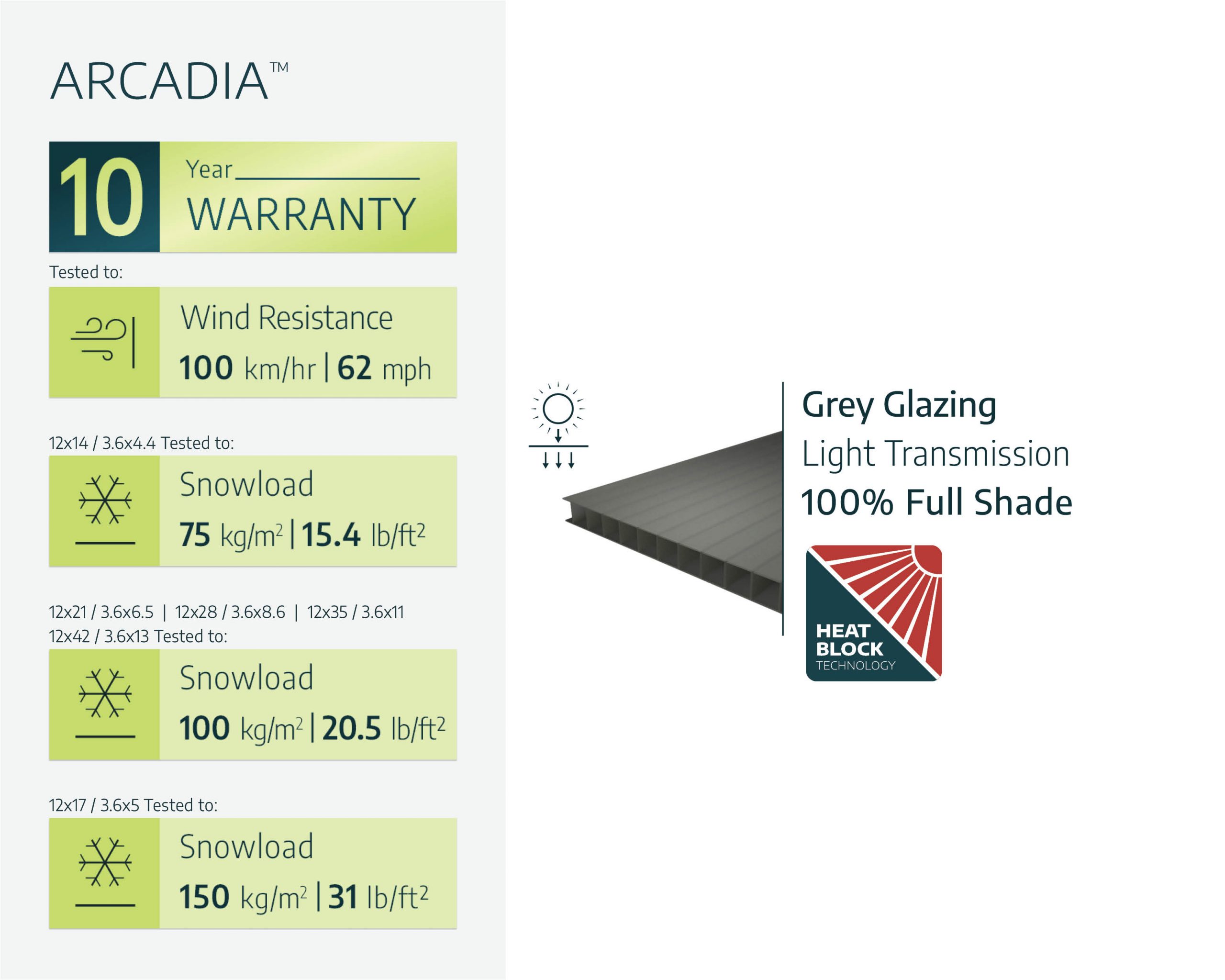

- Year-Round Weather Resistance: Wind, snow, and hail resistant.
- Built-In Gutters: Includes integrated rain gutters and gutter outlets to direct rainwater.
- Self-Assembly: Easy sliding panel system includes pre-drilled profiles, pre-cut sliding panels making assembly as simple as possible.
- Warranty: 10 Year Limited Warranty.
We recommend checking local buildings and zoning codes and guidelines.
Please ensure that any/all appropriate permits were acquired before installing the product.
Also ensure to install on a flat, leveled surface site for construction with solid base. - Accessories: Carbon Fiber IR Heater and perimeter / internal lighting can be added (sold separately).

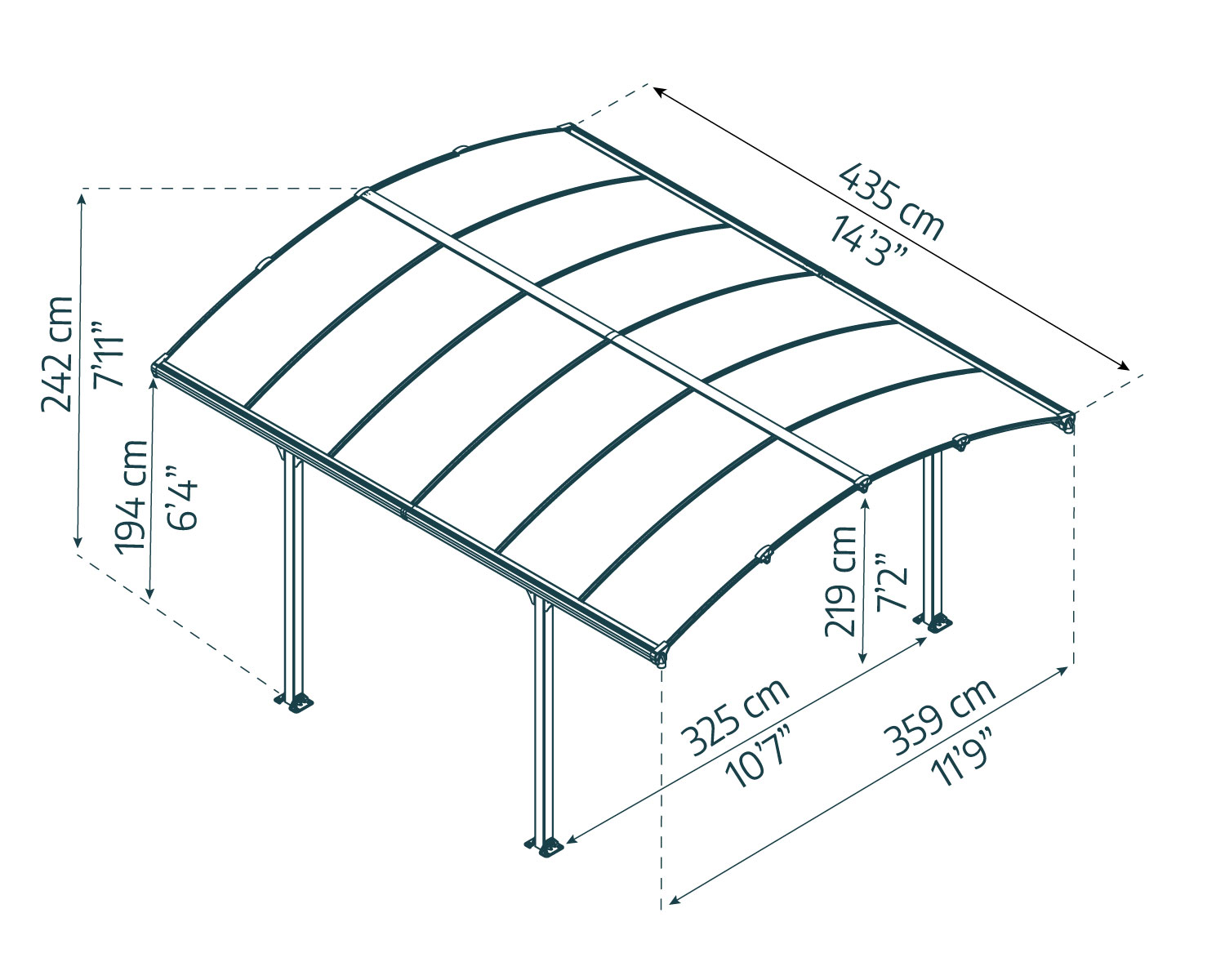

Dimensions
| A | Length | 435cm | 14'3"ft |
| B | Width | 359cm | 11'9"ft |
| C | Height | 242cm | 7'11"ft |
Product Details
Palma, Arizona, Arcadia & Alpine EV Charger
For electric vehicles that will be parked under the carport, you can mount your EV charger on a carport post.
Tucson, Alpine & Arcadia Gutter & gutter heads
Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system
Tucson, Alpine & Arcadia Anchoring
Secure the carport to the surface of your choosing Structure can be easily relocated 6 Sturdy and durable 8.8 cm (3.15 in. x 3.15 in.) aluminium polesRating and Reviews
Rating Breakdown
Reviews with images
Customer Reviews (6)
FAQ
- If the structure or building covers more than 50% of the area surrounding your house.
- If the structure or building is located on the front or side of your house that faces the road.
- If the structure or building is in a conservation area and is more than one story high.
- If the structure or building is higher than the highest part of your house's roof.
- The structure or building is located at the rear of your home.
- The eaves of the structure or building are less than three meters high, especially if it's less than two meters from a boundary.
- The eaves of the structure or building are lower than the highest part of your home.
Assembly guide
Assembly instructions & Certificates for Downloads
Foundation
The product must be built on a solid an Levelled surface in order to perform properly.
1 - Clear the site
2 - Level the ground
Option 3: Solid ground / Asphalt
a + b + c – 40 cm / 1’4″
The Illustration describes center-to-center distance between poles.
The Illustration describes center-to-center distance between poles.
The Illustration describes center-to-center distance between poles.
The Illustration describes center-to-center distance between poles.
The Illustration describes center-to-center distance between poles.
The Illustration describes center-to-center distance between poles.
